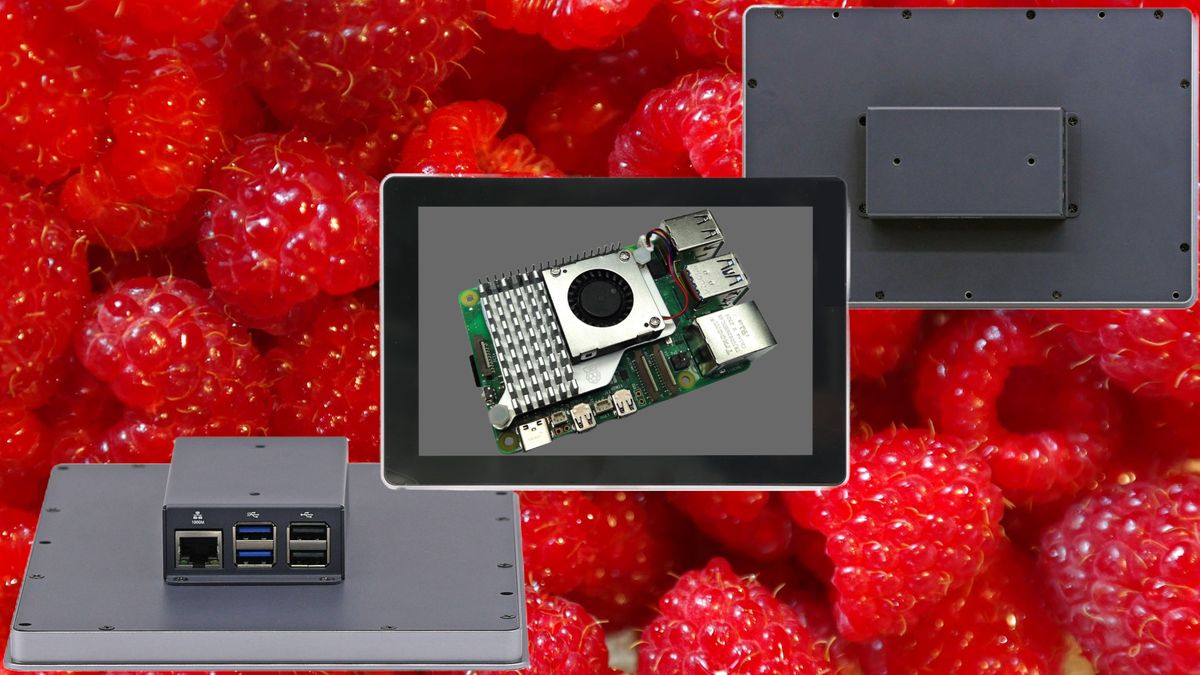

Raspberry Pi 5 powered aluminum industrial panel PC goes on sale
The primary (to our data) Raspberry Pi 5 industrial product has simply gone on normal sale. EDATEC’s industrial panel PC relies across the Raspberry Pi 5 and a 7 or 10 inch display screen designed for industrial functions. The panel is on sale from as we speak for $258 and it comes with a Raspberry Pi 5 8GB!
| Row 0 – Cell 0 | HMI3010-070C | HMI3010-101C |
| Raspberry Pi Compatibility | Raspberry Pi 5 | Raspberry Pi 5 |
| Display screen Measurement | 7-inch | 10-inch |
| Display screen Sort | TFT LCD with LED backlight | TFT LCD with LED backlight |
| Decision | 1024 x 600 | 1280 x 800 |
| Side Ratio | 16:9 | 16:9 |
| Shade Depth | 24-bit (16.7 million colours) | 24-bit (16.7 million colours) |
| Luminance (cd/m2) | 300 | 350 |
| Viewing Angle (H/V) | 160°/160° | 160°/160° |
| Multi-touch | 10 | 10 |
| Dimensions | 188 x 123 x 39mm | 258 x 172 x 38mm |
| Weight | 800g | 900g |
| Case Materials | Aluminum | Aluminum |
| Digicam | Optionally available | Optionally available |
Picture 1 of 5
The panel come sin 7-inch and 10-inch kind elements, with the previous sporting a 1024×600 decision, the latter 1280×800. Each supply 10-point multi-touch and 16.7 million colours. Each micro HDMI ports are additionally uncovered, which signifies that a triple-monitor setup is feasible
The datasheet mentions a digital camera choice, and we will see an area constructed into the bezel of the panel. We did not spot a purchase order choice, however it seems to be like it’s going to change into an choice. We marvel whether it is appropriate with the official Raspberry Pi cameras or is it a USB digital camera?
The touchscreen connects to the Show connector on the Raspberry Pi 5 utilizing COF (chip-on-film) and communicates over I2C. The display screen has a 6H hardness ranking, helpful for the tough industrial environments.
The included Raspberry Pi 5 is connected to the rear of the display screen and has breakouts for the entire ports. There isn’t any GPIO breakout, the truth is the “prime” of the Raspberry Pi 5 case part has no cut-outs for entry or air flow. We assume that the Raspberry Pi 5 is passively cooled because the case is comprised of aluminum and may draw warmth from the SoC. The PMIC and RP1 southbridge are additionally recognized to get a little bit heat, and we hope that they too are adequately cooled.
The Aliexpress itemizing is a little bit complicated, however utilizing the datasheet we managed to decode what was on supply. Evidently the product on sale for $258 is a ten inch mannequin with no digital camera, and a Raspberry Pi 5 8GB and 32GB micro SD card.
| ED | EDATEC |
| HMI3010 | Mannequin |
| 101 | LCD Measurement (10 inch) |
| C | Touchscreen kind |
| _ or C | Clean = No digital camera, C = Digicam |
| 08 | 00 No Pi 5, 04 4GB Pi 5, 08 8GB Pi 5 |
| 32 | 32GB microSD card, 64 = 64GB microSD card |
EDATEC got here to our consideration by way of an industrial panel designed for the Raspberry Pi Compute Module 4. Extra not too long ago it launched two aluminum Raspberry Pi 5 instances which appeared quickly after the Raspberry Pi 5 went on sale. The aluminum instances are designed for the Raspberry Pi 5’s swapped Ethernet port, and permit for the twin digital camera / show ports and the relocated PoE pins. We have the instances in for overview and they are going to be on the bench quickly.
The flagship Raspberry Pi 5 is proving in style with lovers. Till 2024, lovers may have sole entry to the entire inventory, leaving industrial prospects, usually those who order in bulk, ready for his or her share of the pi(e).
The EDATEC industrial Raspberry Pi 5 PCs are on sale by way of Aliexpress.
